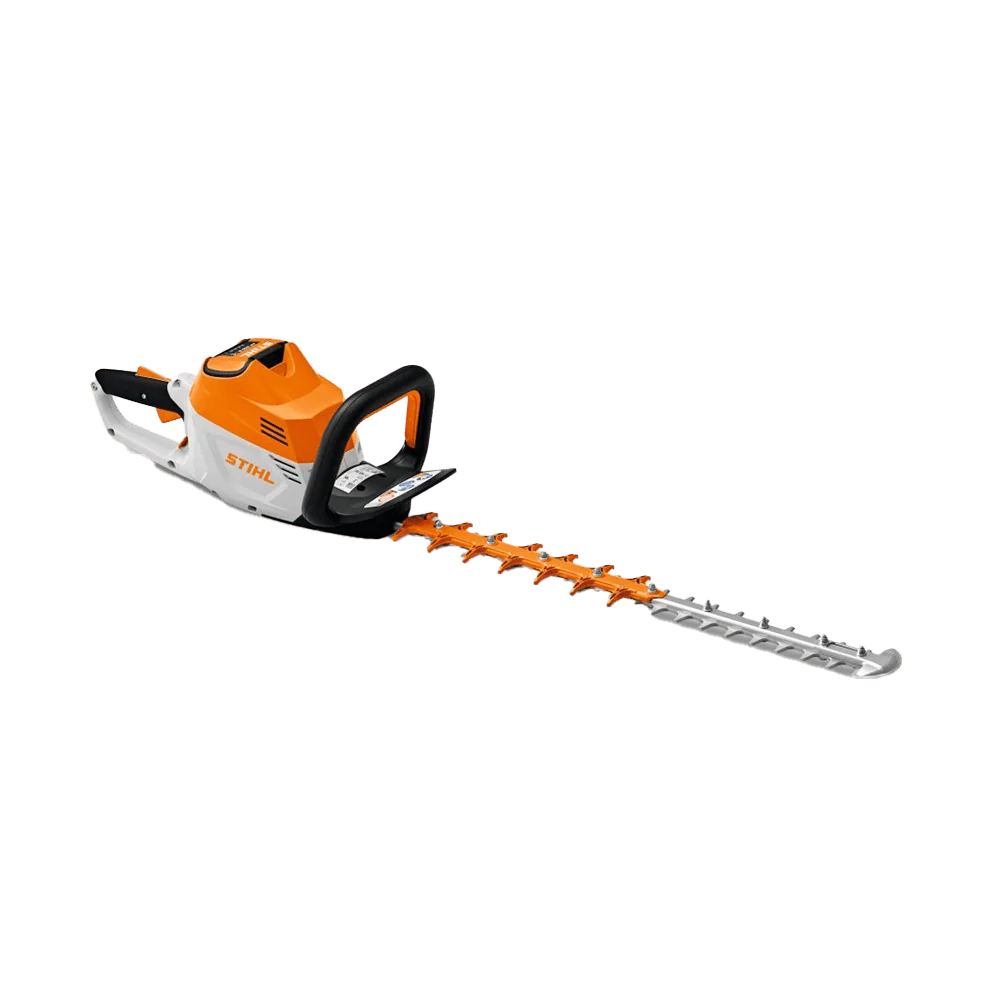

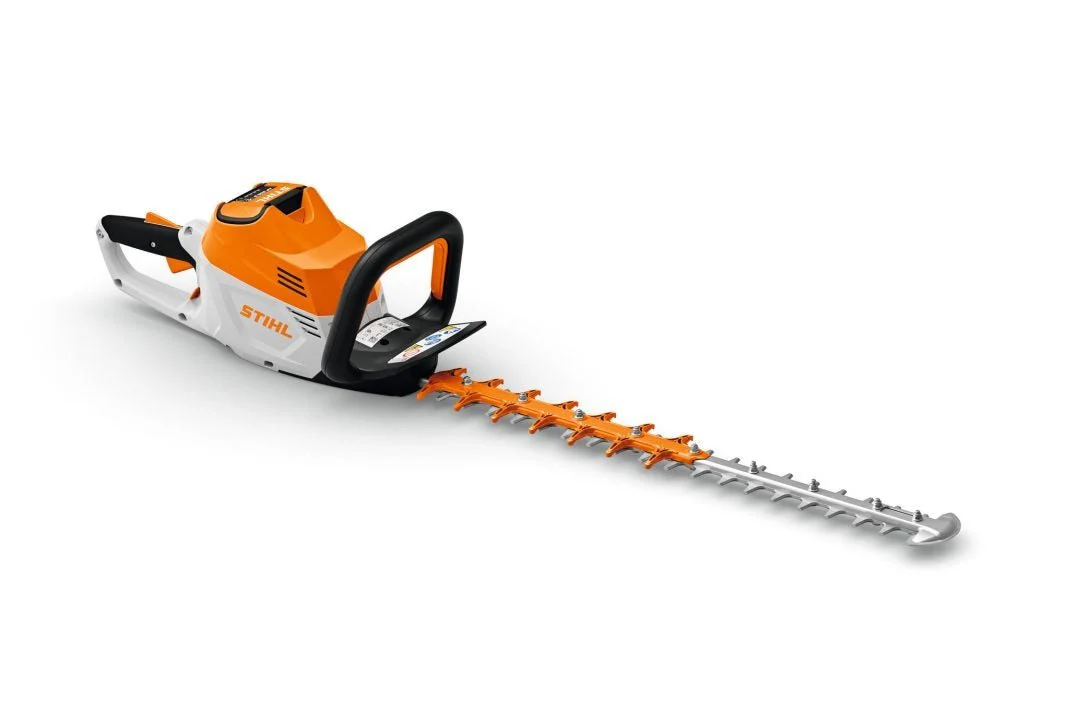

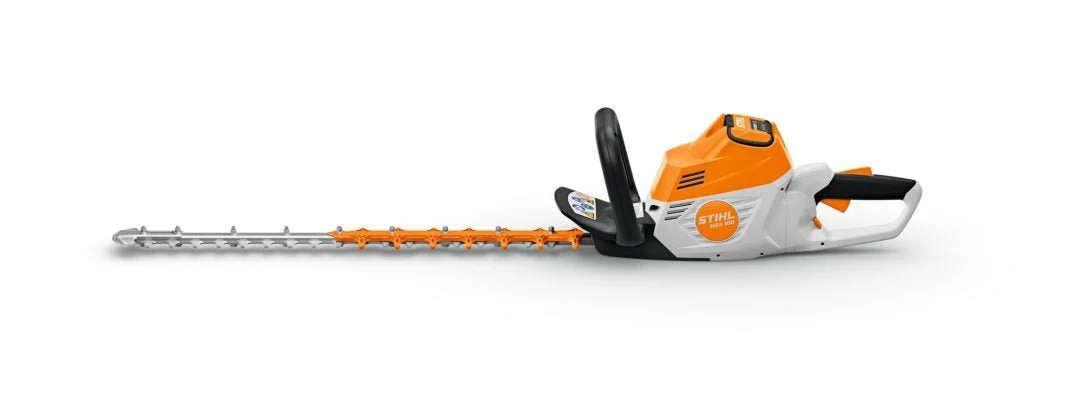

Stihl Hsa 100.1 Cordless Hedge Trimmer Ha070113530 (Body Only)

HSA 100 Cordless Hedge Trimmer: Powerful hedge trimmer with rotating handle and 60 cm / 24" cutting blade – Tool Only

The HSA 100 is a powerful professional hedge trimmer for use in noise-sensitive areas, nurseries, landscape maintenance, and grounds keeping operations. Powered by a powerful 36 V Lithium-Ion battery and part of the STIHL AP System, it’s ideal for maintaining all types of hedges, and for trimming and pruning anything from thin branches to thick shoots that are many years old.

With long-lasting sharpness, a 60 cm / 24” double-sided cutting blade with 34 mm tooth spacing for excellent cutting performance and rapid work progress.

It’s highly ergonomic thanks to optimum power tool balance and allows for effortless working even over longer periods thanks to the anti-vibration system, loop handle and rotatable multi-function handle. The rotatable multi-function handle means you can work comfortably and precisely when along the side of long hedges – helping you to achieve the perfect cut with your hedge trimmer! The handle can be rotated into 3 positions across 180°, reducing the strain on your wrist when cutting long hedges and making repeated motions.

The HSA 100 has an anti-block system for easy change of the cutting blades' rotational direction in the event of blockages. Constant and reliable performance is provided too thanks to the durable EC engine. Plus, the hedge trimmer comes equipped with a screw-on tip protector for low-wear work close to the ground or along walls.



Features

Double-Sided Cutting Blade: FOR OPTIMAL HEDGE CUTTING. The double-sided cutting blade facilitates optimum hedge cutting: vertically, horizontally and in corners. Thanks to the double-sided cutting blades, you can effectively trim or prune your hedge, as well as thicker branches.

Optimised Cut Protection: The wide gaps in the tooth spacing allow thicker branches to be cut.

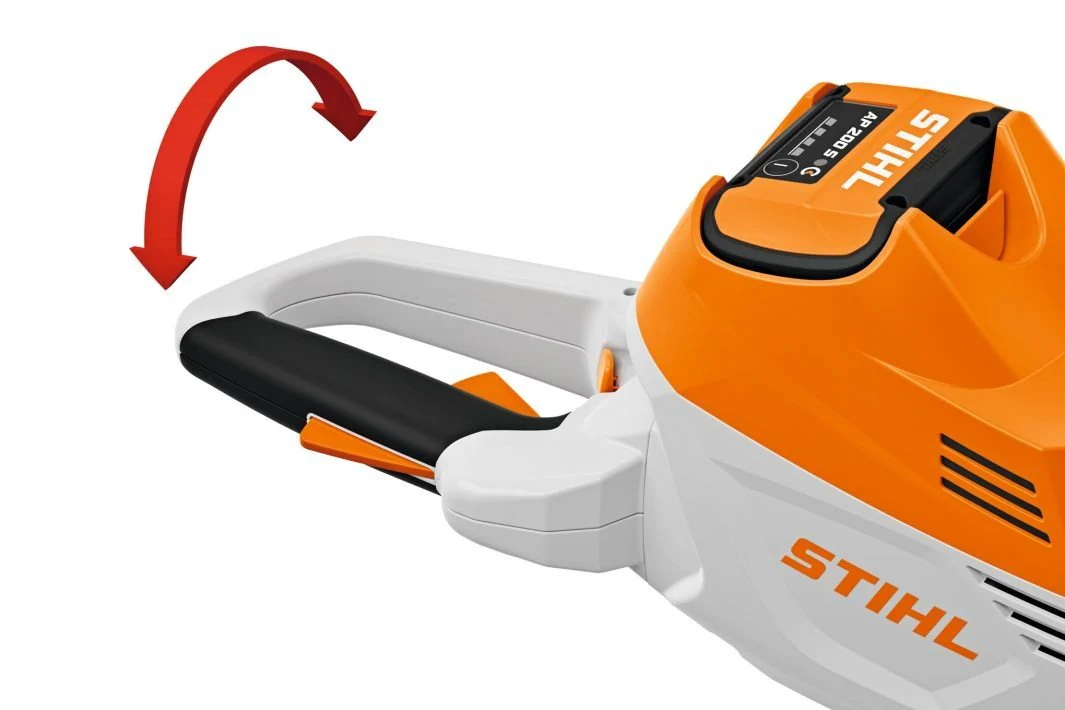

Rotatable Multi-Function Handle: ERGONOMIC, COMFORTABLE WORKING. The rotatable multi-function handle enables precise and comfortable cutting with your hedge trimmer, when working sideways and at head height. It can be rotated 90° to the left and right and so is also suitable for left-handed and right-handed users. This means the tool is always in the most ergonomically effective position in your hand.

Stihl Anti-Vibration System: FOR MORE PLEASANT WORK. Vibrations can occur when you put your tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and therefore to your body. The result is that your tool is more comfortable to hold and your work is much less tiring.

EC Motor: LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.

Tip Protector: PREVENTS DAMAGE. The tip protector prevents damage to the blades. The tip protector also makes it easier to cut close to the ground or along walls.

Pruning System: UNIVERSAL CUTTING SYSTEM FOR HEDGE TRIMMERS. The pruning system enables you to trim and prune with just one hedge trimmer. The single-sided and double-sided cutter blades produce a very clean cut when trimming, while the optimum sharpening angle facilitates high cutting performance. Due to the large tooth spacing, you can also prune your hedge effectively.

Hanging Eyelet: FOR SAFE STORAGE. The tool has an eyelet, allowing you to store your tool safely and compactly.

Blade Scabbard: FOR SAFE TRANSPORT AND PROTECTED STORAGE. Transport and store your hedge trimmer and shrub shears safely and securely with the tailor-made blade scabbard.

Two Handed Design: The tool is easily started by activating both switches on the loop handle and the rear handle at the same time. The cutting speed is continuously variable using the rear control, for a fine and precise cut. The two-handed design is suitable for both left and right-handed users.

Functional Design: The engine housing has smooth surfaces and round contours. This prevents the tool from getting caught on branches. The hedge trimmers are easy to clean.



Technical Details

Rated voltage	36 V
Power	0.29 kW 1)
Battery system	AP
Recommended battery	AP 200
Stroke rate	3000 rpm
Device weight without battery	3.7 kg 2)
Cutter blade length	60 cm
Tooth spacing	34 mm
Battery working time AP 300 S (Power level 1)	up to 225 min
Battery working time AP 500 S (Power level 1)	0-270 min
Device length with blade	116 cm
Sound pressure level	76 dB(A)
Sound power level	84 dB(A)
K-factor (Sound pressure level)	2 dB(A) 3)
K-Factor (Sound power level)	2 dB(A) 3)
Vibration level, left	1 m/s² 4)
Vibration level, right	0.8 m/s² 4)

1)Mechanical power as comparative value to petrol appliance 2)with knife 3)K value according to Directive 2006/42/EC 4)depending on the blade used.
