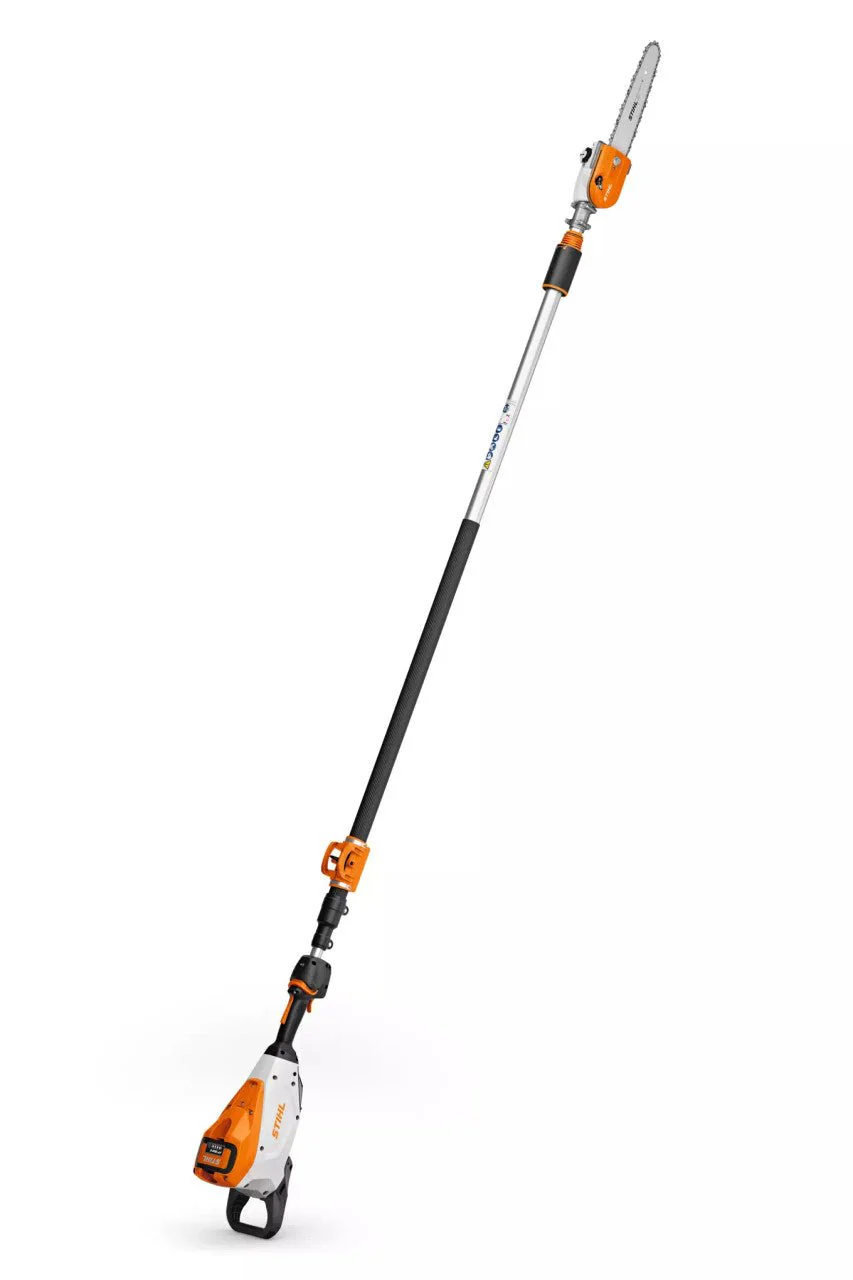

Stihl HTA 135.0 Telescopic Pole Pruner LA012000000

Technical details

Bar length	30 cm
Bar length	12 "
Power	1.1 kW
Rated voltage	36 V
Weight	6.8 kg 1)
Sound pressure level	88 dB(A) 2)
Sound power level	102 dB(A) 2)
Vibration level, left	4.3 m/s² 3)
Vibration level, right	5.1 m/s² 3)
Saw chain pitch	3/8" P
Total length (min.)	2850 cm 4)
Total length (max.)	4050 cm 5)
Recommended battery	AP 300 S
Battery working time AP 300 S (Power level 1)	up to 70 min 6)
Battery working time AP 500 S (Power level 1)	0-54 min
Battery working time AR 2000 L (Power level 1)	up to 160 min 7)
Battery working time AR 3000 L (Power level 1)	up to 240 min 7)
Battery system	AP
IPX Rating	IPX4,N/A

¹⁾With bar and chain, without cable and chain oil²⁾K-factor according to DIR 2006/42/EC = 2.5 dB (A)³⁾K-factor according to DIR 2006/42/EC = 2m / s ²⁴⁾Minimum with tool⁵⁾Maximum with tool⁶⁾Working times are approximate and may vary depending on application⁷⁾Working time may vary depending on the application



Features

SPROCKET COVER WITH DIPSTICK

For improved directional control when positioning and sawing, the dipstick has been integrated into the design of the pruner head as a raised line.



PROFESSIONAL TELESCOPIC SHAFT

The rigid, professional telescopic shaft can be quickly adjusted for easy positioning and a precise cut.



LIGHTWEIGHT, ROBUST MAGNESIUM TRANSMISSION

LOW WEIGHT WITH HIGH DURABILITY. Especially in the professional sector, low weight is of great importance for work. Thanks to the use of lightweight magnesium, you benefit from weight reduction without any compromise in terms of transmission robustness. This relieves the strain on you as you work and ensures that the tool has a long service life.



PROTECTIVE FOOT

The protective foot protects the housing from contact with the floor.



BRANCH HOOK

REMOVAL OF LOOSE CUTTINGS. Thanks to the sturdy branch hook, you can remove loose and cut branches when working at height.



TELESCOPIC SHAFT

IMPROVED REACH. The telescopic shaft allows you to work at height from the ground. This is ideal for trimming high-up branches or cutting tall hedges. The telescopic shaft can be adjusted without tools.



SINGLE-HANDED MULTI-FUNCTION HANDLE WITH SPEED CON

EASY ADJUSTMENT OF tool PERFORMANCE. Quickly and conveniently adjust the speed of your tool to the respective work situation. Doing so reduces energy consumption at low speeds, and in this way extends the battery runtime. The practical control handle with speed control allows you to make the relevant adjustment without having to change your grip or pause work.



METAL MESH AIR FILTER

OPTIMAL ENGINE COOLING. The air filter with fine metal mesh cleans the air and in this way ensures optimum engine cooling. As it is easy to clean, it also offers a long service life.



BATTERY COMPARTMENT IN THE ENGINE CASING

DIRECT POWER SUPPLY TO THE tool. With this tool, you can insert the required battery from the STIHL AP System directly into the engine housing. This increases your mobility and flexibility when working.



HTA 135 Cordless Telescopic Pole Pruner: Powerful, professional pole pruner with 30 cm / 12" bar and 3/8" P saw chain

The most powerful STIHL cordless pole pruner. Low-vibration. For professional use in tree maintenance, orchards and local authorities. For pruning trees, removing dead wood and breakage from storms, and for cutting back fruit trees. 3/8" P saw chain, lightweight magnesium gearhead, sturdy branch hook for easy removal of loose cuttings from the tree. Particularly rigid-in-guidance professional telescopic shaft with rapid adjustment for precise biting characteristics and a precise cut. Ear defenders required. Mounting point for the STIHL Smart Connector 2 A on the power tool housing. Total length adjustable between 285 – 405 cm.
