Stihl REA 100.0 Plus Cordless Pressure Washer - Battery Operated RA010117610

Technical Details



Operating pressure	125 bar
Operating pressure	1800 psi
Max. pressure	150 bar
Max. pressure	2100 psi
Min. water throughput	270 l/h
Max. water throughput	300 l/h
Max. water feed temperature	40 °C
High-pressure hose length	6 m
Device weight	6.7 kg
Sound pressure level	75 dB(A)
Sound power level	87 dB(A)
Vibration level, left	1.7 m/s²
Vibration level, right	2 m/s²
Rated voltage	36 V

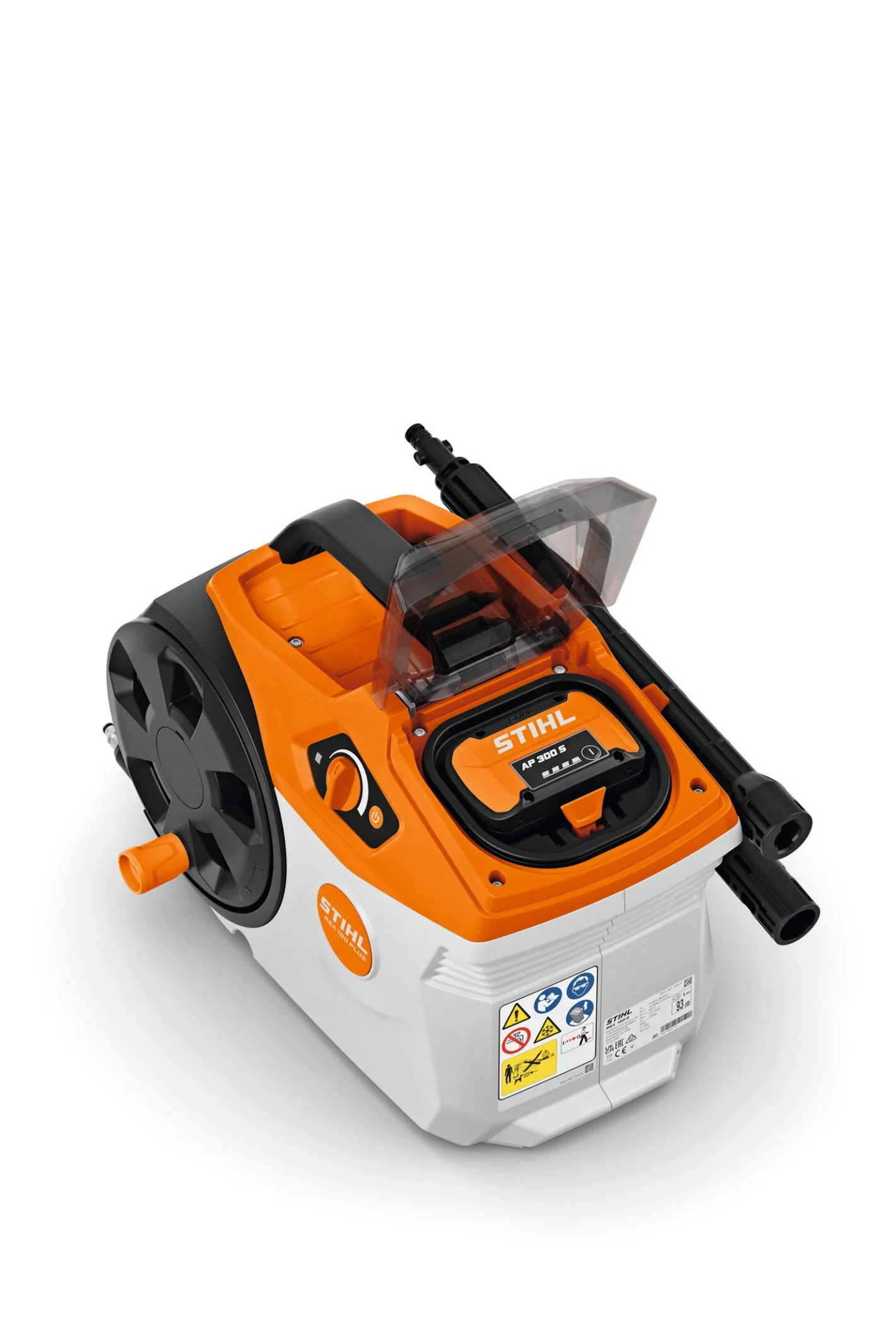

Recommended battery	AP 300 S
Battery working time AP 200 S (Power level 1)	30 min
Battery working time AP 300 S (Power level 1)	0-45 min
Battery working time AP 500 S (Power level 1)	0-50 min
Battery system	AP
IPX Rating	IPX5

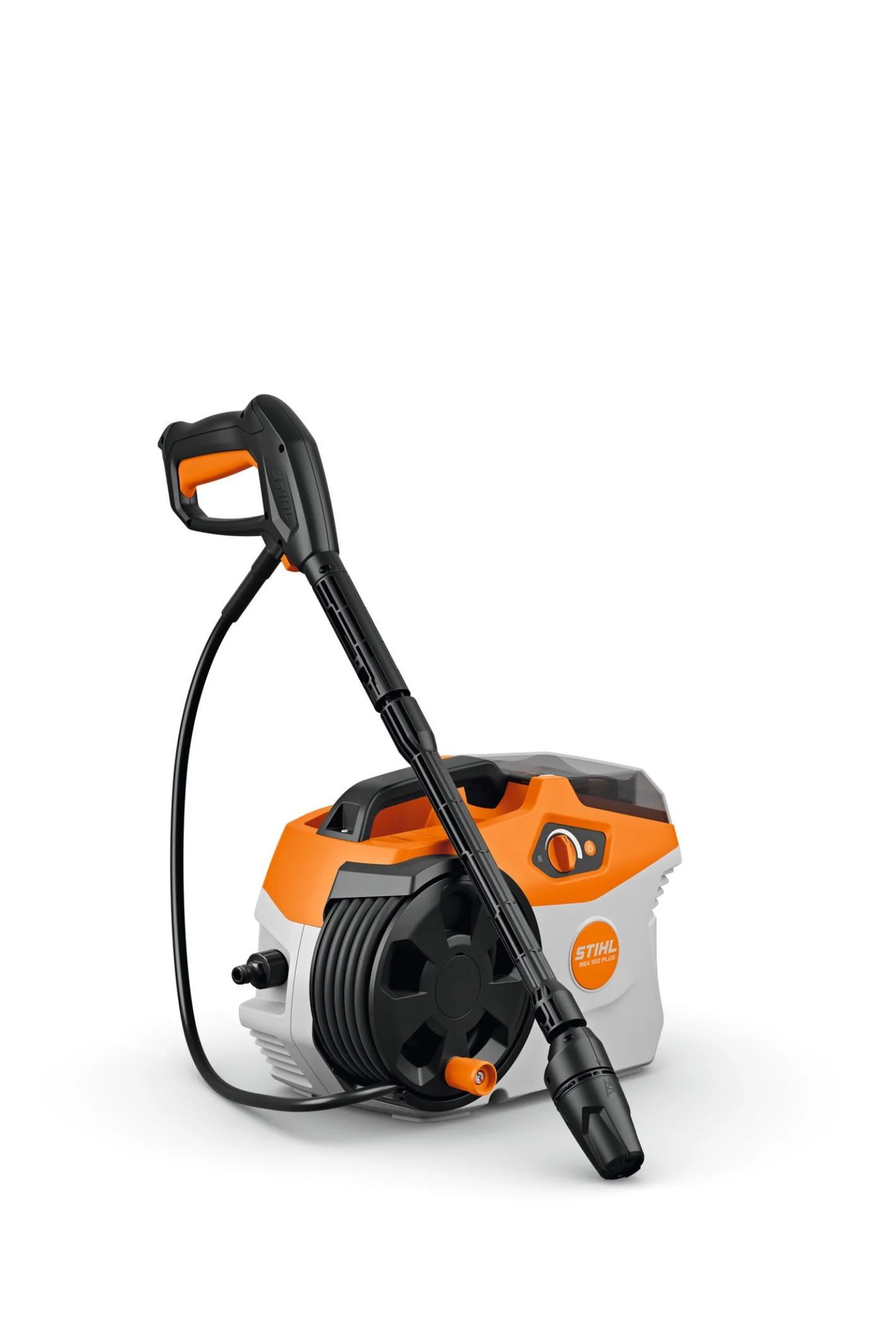

The REA 100 PLUS is a battery-powered portable pressure washer that is part of the AP System and designed for large gardens and professional applications, making it perfect for use at home. Compact and lightweight, it is powered by an interchangeable battery that can be used in any other machine in the AP System range to cover other gardening tasks, as well as professional machines, such as chainsaws, hedge trimmers, blowers, pole pruners and more.



As the pressure washer is powered by a battery, it means it isn’t reliant on a power connection and is instead a portable device that can be used anywhere, such as on a campsite, bike trail, on farm machinery or in home gardens and patios. If the REA 100 PLUS is being used away from a water connection, you can attach a suction hose to the pressure washer and place this in a water container.



The REA 100 PLUS is fitted with a quiet and powerful EC motor which works in combination with the high-pressure pump and aluminium pump head of the pressure washer. It has an operating pressure of 125 bar and a water flow rate of 270 litres per hour. Pressure can be adjusted with the variable control switch to suit the cleaning job at hand.



The pressure washer comes with a spray lance and a 3-in-1 nozzle, which allows you to choose between 3 different cleaning modes by simply twisting the nozzle to the chosen mode. The fan jet nozzle is designed for cleaning normal dirt off surfaces, the rotary nozzle is designed for removing stubborn dirt from robust surfaces and the cleaning agent nozzle combines water and a detergent, allowing you to spray the mixture directly onto a surface.  The spray lance has an anti-twist quick-release coupling which prevents it from getting tangled during cleaning jobs and the pressure washer has an integrated 6-metre hose reel. The spray lance splits in two and can be stored on the pressure washer alongside the 3-in-1 nozzle, to make transporting and storing the pressure washer easier too.



The REA 100 PLUS has a working time of up to 45 minutes with the recommended AP 300 S battery.





Features

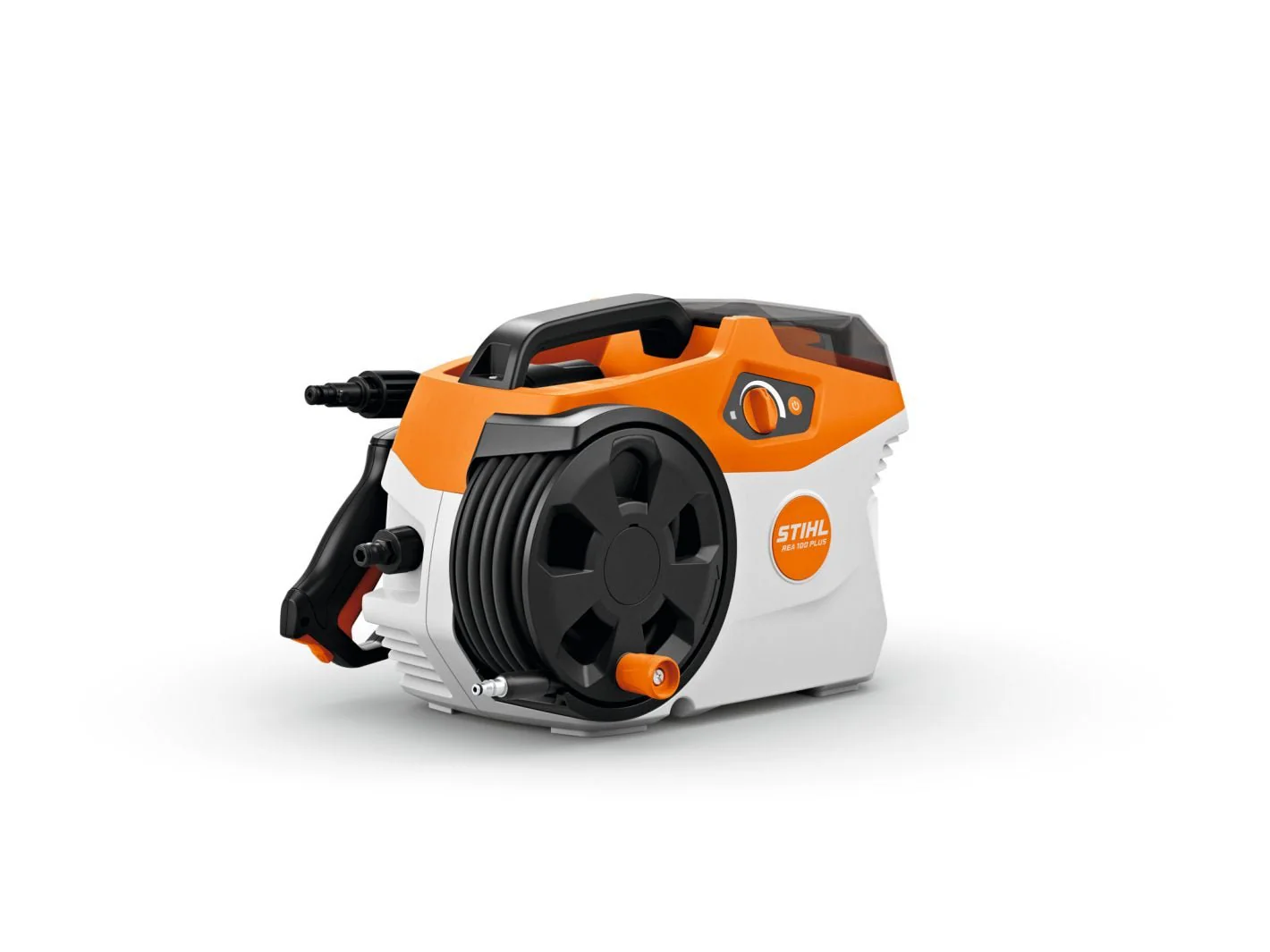

Hose Reel

SIMPLIFIES WINDING. With the hose reel, you can not only store the pressure washer hose of your tool in a space-saving manner, but also wind it up conveniently. This can even be done with one hand thanks to the winding aid with hose guide.



Aluminium High-Pressure Pump

FOR A LONG SERVICE LIFE. Your power tool has a high-quality, robust and durable high-pressure pump made of aluminium.



3-in-1 nozzle

With the 3-in-1 nozzle, the user can switch between flat nozzle, rotary nozzle and low-pressure nozzle for cleaning agents as required. The fan jet nozzle is the standard nozzle for cleaning normal dirt on various surfaces. The rotary nozzle is for removing stubborn dirt from robust surfaces. And the cleaning agent nozzle combines water with cleaning agent from the cleaning agent tank and sprays the mixture directly from the spray lance.



Infinitely Variable Pressure

ALWAYS THE RIGHT OPERATING PRESSURE. With the infinitely variable pressure adjustment, the operating pressure of the pressure washer can be quickly and easily adjusted for the surface to be cleaned. This allows you to clean gently and efficiently. In addition, you can save water and reduce power consumption, which can extend the runtime of the battery used.



Anti-Twist Quick Release Coupling

COMFORTABLE AND EFFICIENT HOSE CONNECTION. The quick-release coupling prevents the hose from becoming twisted. It also allows you to connect the pressure washer hose to the cleaner quickly and easily. The anti-twist quick-release coupling also ensures that you can use the full length of the hose when cleaning.



External Suction of Cleaning Agent

FOR TACKLING STUBBORN DIRT. You can also add cleaning agent from a separate container to the spray jet. This will help you to remove particularly stubborn dirt.



EC Motor

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.



Transport Handle

FOR SIMPLIFYING TRANSPORT. Your cleaner has a grip or handle for lifting, carrying and loading.



Constant Power

When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.
